Target

V1769 Cyg — WR 134

Frame / Rev
013 / A
Integration
24h 55m
V1769 Cyg — WR 134
HOO · 3nmRedCat 51 WIFDQHY Minicam8M (IMX585) · 2.39″/px
Zoom 1:1
Catalog
WR 134 · HD 191765 · Gaia DR3 2059146654767199872 · HIP 99377 · V* V1769 Cyg
Class
Wolf-Rayet star
Constellation

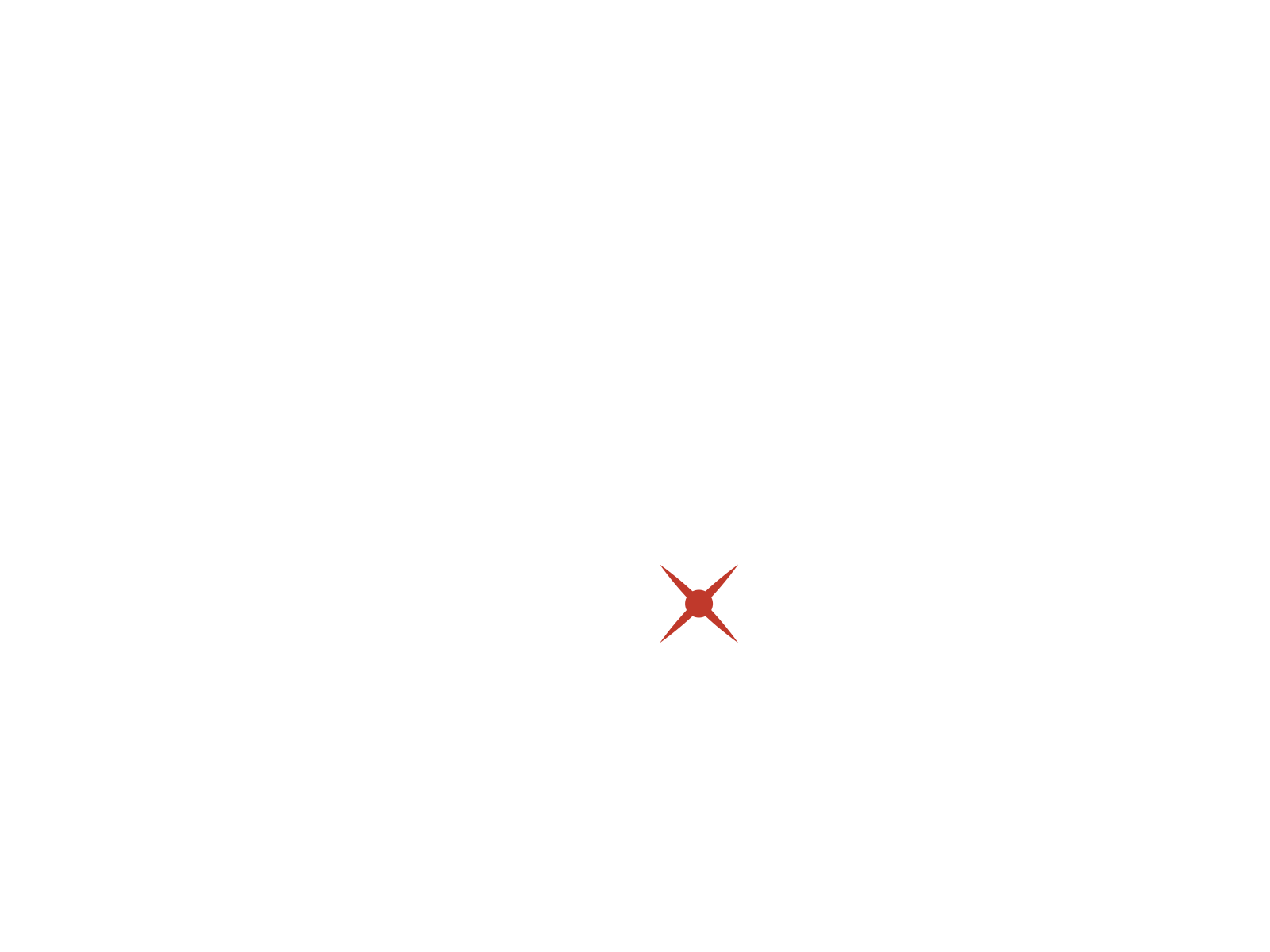

Cygnus
Distance
6,020 ly
Coordinates

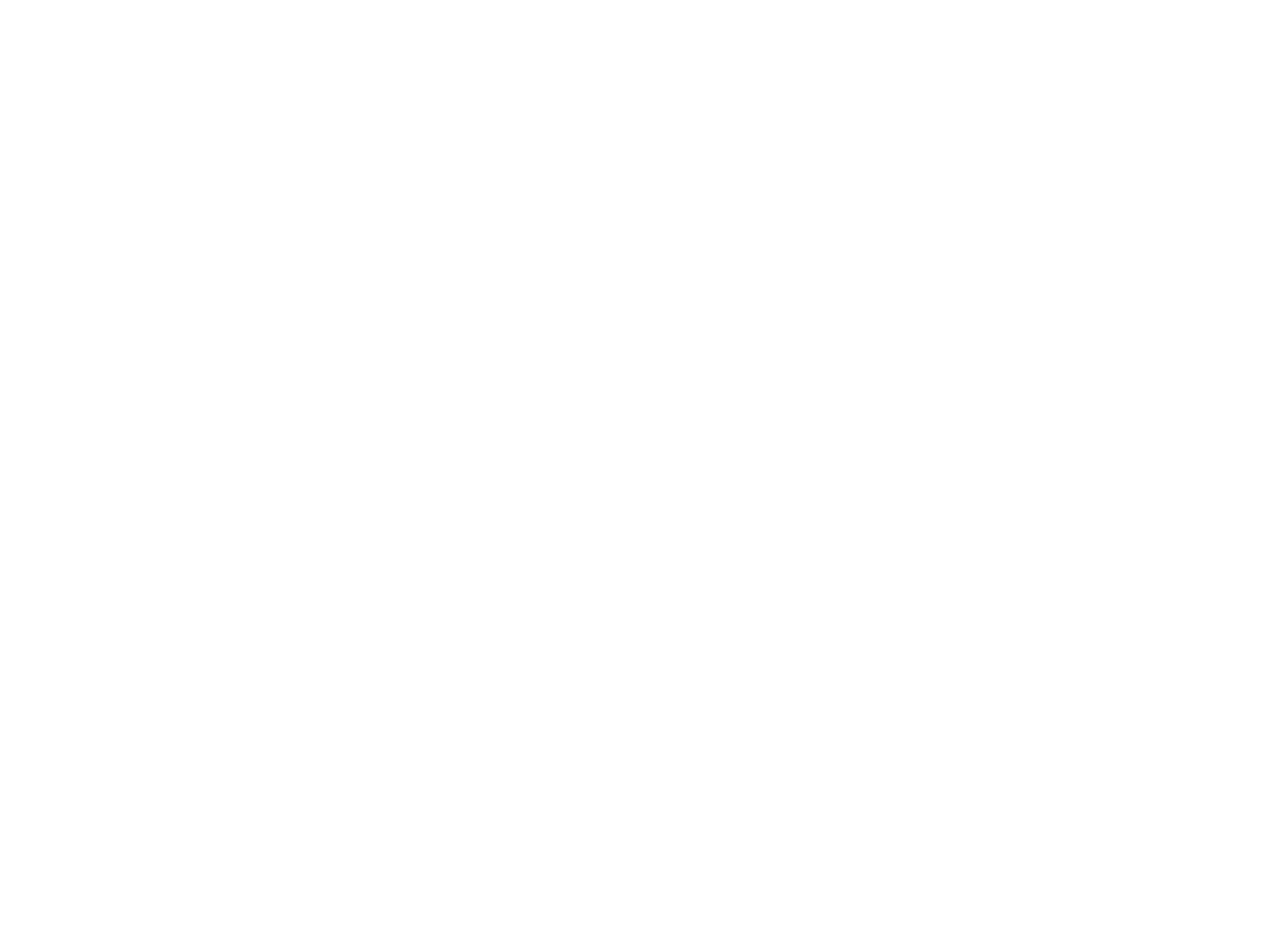

RA 302.559137° · Dec +36.176409°
Palette
HOO
Sessions
9 nights · 24 Apr – 07 Jul 2026
Sky
Bortle 9

Target & processing

V1769 Cyg (WR 134) appears as a bright, blue-white star in the constellation Cygnus, visible in the northern hemisphere during late summer. This Wolf-Rayet star is characterized by its extremely hot and luminous surface, marking it as one of the most massive stars known to date. As seen from Earth, V1769 Cyg occupies a prominent position within the Cygnus constellation's eastern quadrants. Located approximately 6,020 light-years away, this stellar entity dominates its surroundings with an intense radiance.

This one is a tough one. This is the target that asked the most work so far. Although the Ha is relatively easy, the OIII is so faint, it's a real challenge. First in acquistion, as in Bortle 9 it needs dozens of hours just on OIII to reveal the faint details of the whole bubble, and then in processing, where the top part of the bubble is pretty bright, but the filaments around are very faint.

To solve those issues, I went a couple of nights in a Bortle 4 sky to get the OIII (that's why the total integration time is not that high, but I probably would have need 40 to 50h if I decided to stay in Bortle 9). This was my first nomad experience, and it was very nice (although I had to throw a whole night because of unexpected fog where I was located).

As for the processing, I use some HDRMultiscaleTransform to try to bring the brighter and fainter part a bit closer in terms of intensity. I also used the Generalized Hyperbolic Stretch (GHS) to reduce a bit the contrast between those two parts. It took me 60h+ to process. I did more than a dozen of version, never satisfied. I tried different color palette, different processing, but it was never good enough. Not enough details, processing too harsh, clipped gas, etc... It tooks weeks before I got a processing that I deemed 'okay'.

Note to self

I'm still not 100% satisfied with this processing in the end, but I decided to move on for now. I will keep adding more data over time on this one, and hopefully, with more processing experience, I will finally be able to get a satisfying result.

Per-filter integration

49.8% · 12h 25mOIII 36.1% · 9h 00mR 4.7% · 1h 10mG 4.7% · 1h 10mB 4.7% · 1h 10m
Hα 3nm
12h 25m
OIII 3nm
9h 00m
R
1h 10m
G
1h 10m
B
1h 10m
KeptRejected at integration
Equipment
Optics
William Optics RedCat 51 · 250mm f/4.9
Camera
QHY MiniCam8M · IMX585 · 2.9µm / px
Filters
XiMei 3nm Hα / OIII / SII + XiMei Broadband R / G / B
Mount
ZWO AM3 harmonic, no counterweight
Guiding
Uniguide 32mm + ZWO ASI120MM Mini
Control
Mele Quieter 4C · NINA + PHD2
Site
Montréal, QC · Bortle 9 · 45.5° N
