Target

NGC 6888 — The Crescent Nebula

Frame / Rev
012 / A
Integration
19h 05m
NGC 6888 — The Crescent Nebula
SHO · 3nmRedCat 51 WIFDQHY Minicam8M (IMX585) · 2.39″/px
Zoom 1:1
Catalog
Crescent Nebula · HD 192163 · Gaia DR3 2061690233159124352 · HIP 99546 · LBN 075.51+02.29 · LBN 203 · NGC 6888 · V* V1770 Cyg · WR 136
Class
Wolf-Rayet star

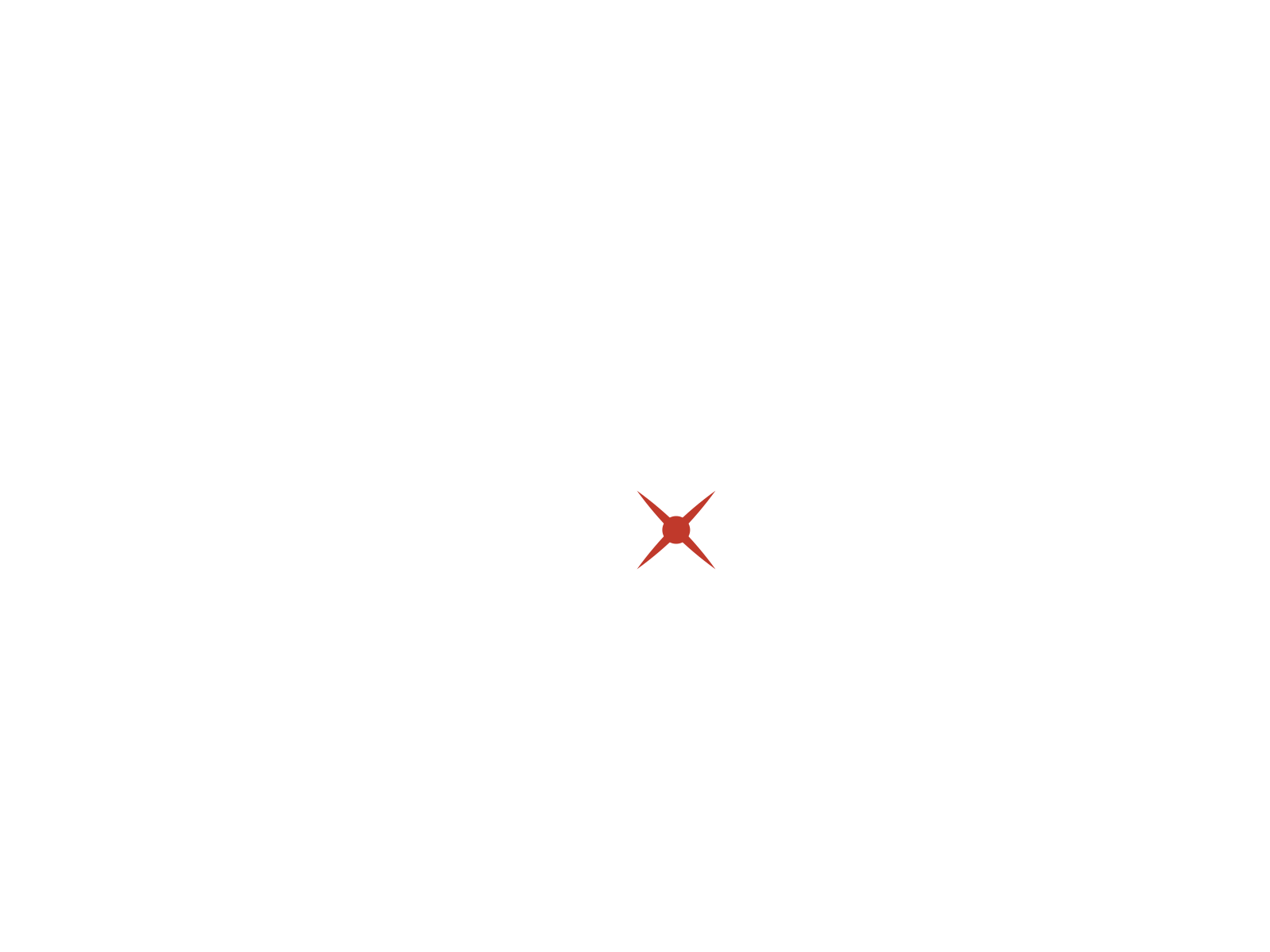

Constellation
Cygnus
Distance
6,704 ly

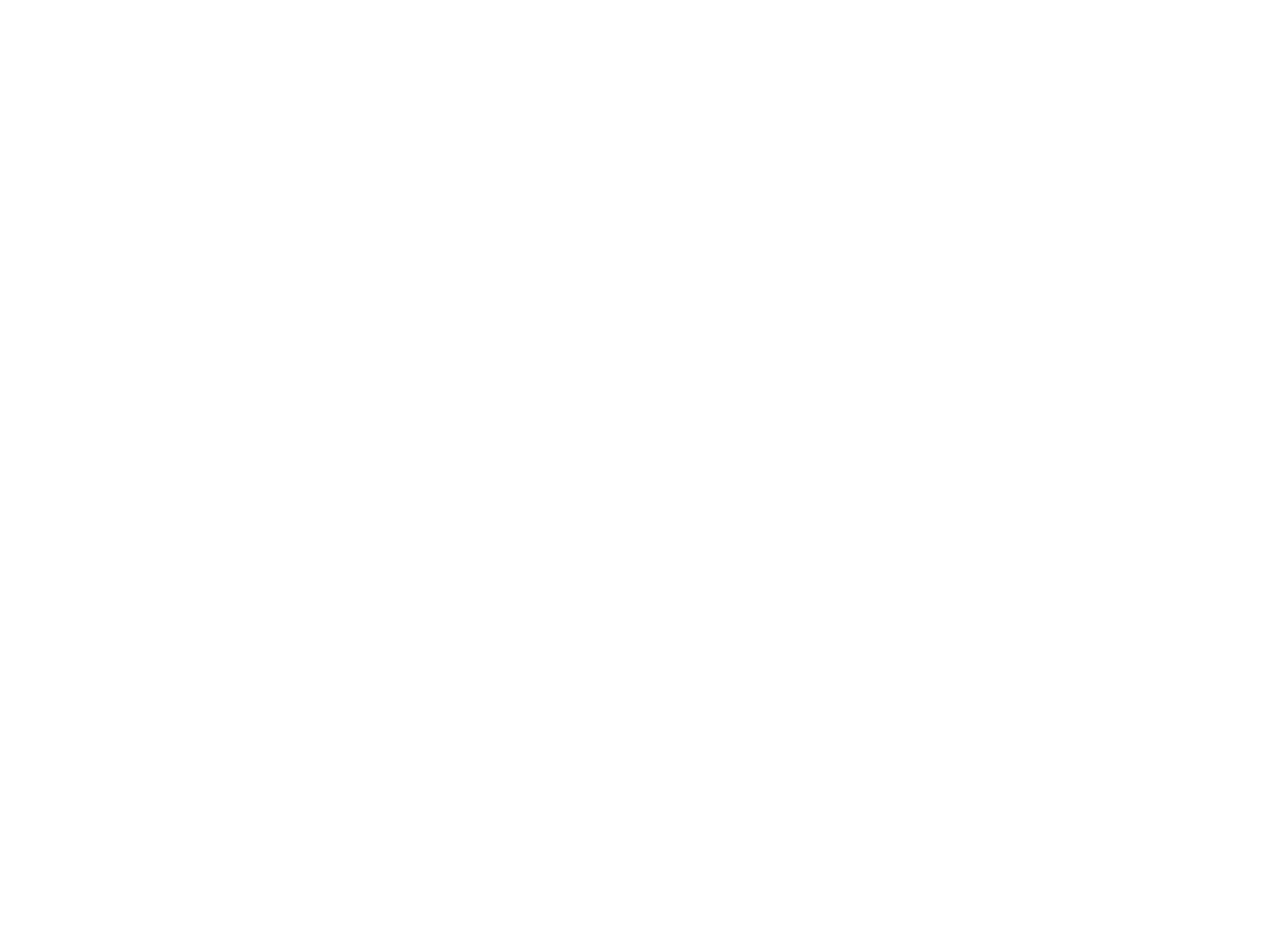

Coordinates
RA 303.027258° · Dec +38.354940°
Palette
SHO
Sessions
6 nights · 04 Jul – 24 Jul 2026
Sky
Bortle 9

Target & processing

The Crescent Nebula, NGC 6888, appears as a bright, wispy arc in the constellation Cygnus. This is a Wolf-Rayet star surrounded by a vast, interstellar gas cloud. As seen from Earth, it lies near the Summer Triangle asterism in the northern hemisphere. Six thousand seven hundred four light-years away, this object shines with an otherworldly light.

Most of the images I've seen of this target is centered and with a HOO palette. I noticed some SII signal, so I decided to go with a SHO palette and with a different composition, to include it's environment, and especially the part on the left of the image, that I like it very much (I like the mix of colors, with some cyan and magenta).

Also, the most observant would noticed the spikes on the stars. They shouldn't be here with a RedCat 51. Although this could be added during processing, this is not the case here (I try to keep the processing relatively minimal). But when looking at Hubble and JWT images, I noticed these spikes on stars, and found that it was really bringing something to the image, so I decided to 3D print a diffraction spike mask to put in front of my RedCat. I even had to re-acquired the stars, because I already acquired them when I decided to do some tests with a diffraction mask.

Note to self

I'm really happy how it turns out, with the different palette, the different composition and the new diffraction mask. I'm also happy with the processing. The only 'issue' is that in the SHO palette, the OIII cloud around the nebula is a bit less visible (dark blue), but I'm okay with it as the beautiful colors of the rest of the image make up for it.

Per-filter integration

25.8% · 4h 55mSII 20.1% · 3h 50mOIII 35.8% · 6h 50mR 6.1% · 1h 10mG 6.1% · 1h 10mB 6.1% · 1h 10m
SII 3nm
3h 50m
Hα 3nm
4h 55m
OIII 3nm
6h 50m
R
1h 10m
G
1h 10m
B
1h 10m
KeptRejected at integration
Equipment
Optics
William Optics RedCat 51 · 250mm f/4.9
Camera
QHY MiniCam8M · IMX585 · 2.9µm / px
Filters
XiMei 3nm Hα / OIII / SII + XiMei Broadband R / G / B
Mount
ZWO AM3 harmonic, no counterweight
Guiding
Uniguide 32mm + ZWO ASI120MM Mini
Control
Mele Quieter 4C · NINA + PHD2
Site
Montréal, QC · Bortle 9 · 45.5° N
